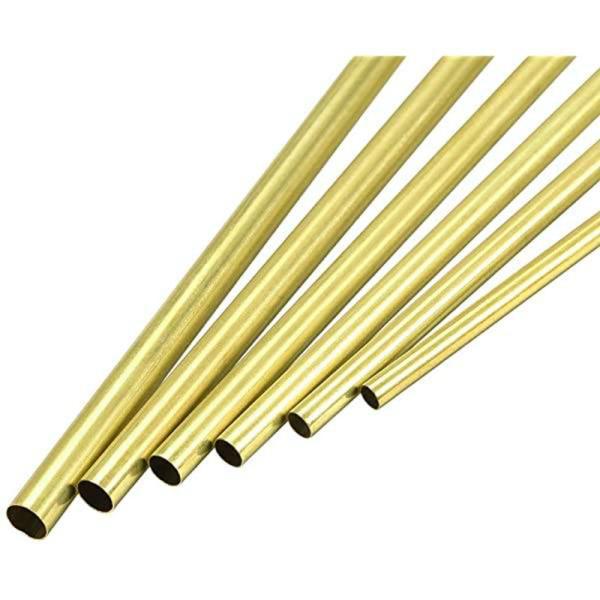

H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter

    Buy cheap H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter from wholesalers

    Buy cheap H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter from wholesalers
    • Buy cheap H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter from wholesalers
    • Buy cheap H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter from wholesalers
    • Buy cheap H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter from wholesalers
    • Buy cheap H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter from wholesalers

    H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter

    Ask Lasest Price
    Brand Name : Antai
    Model Number : H62 H65 H68 H70 H80
    Certification : SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Ton Per Month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    H68 H70 H80 Hollow Brass Tube Round Straight For Heat Meter

    Customized Hollow Brass Tube H62 H65 H68 H70 H80 Brass Pipe Brass Tube Round Pipe For Heat Meter


    StandardASTMB280,JIS H3300,AS/NZS1571.JIS3300-2006
    Material

    C21000,C22000,C22600,C23000,C24000,C26000,C26130,

    C26800,C27000,C27200,
    C27400,C2800,H59,H62,H70,H65,H80,H90,CuZn30,CuZn37,

    CuZn35,CuZn40,C31400,
    C31600,C32000,C33000,C33200,C33500,C34000,C34200,

    C34500,C35000,C35300,
    C35600,C36000,C36500,C37000,C37700,C38000,C38500,

    C40500,C40800,C41100,
    C42200,C44400,C48200,C46400,C46200,C60600,C62300,

    C62400,C63000,C63200,
    C64200,C71000,C71500,C70400,C70600,C70250,C70260,

    C71520,C72200,C74500,
    C75200,C77400,etc.

    SizeWall thickness: 0.2mm~120mm
    Outside Diameter: 2mm~910mm
    Length: 1m, 2m, 3m, 6m, or as required.
    ApplicationThe copper tubes are made of pure electrolysis copper. They are precise in size and smooth on surface. Besides, they are of good
    heat conductibility. Furthermore, they are reliable in quality. Thus, they are widely used for heat exchangers, radiators,
    coolers, electro-heat-up pipe, air conditioner and refrigerators. The straight pipes can be used for oil transportation, brake
    pipes, water pipes and gas pipes for construction

    AlloyChemical Composition(%)
    QBJIS/UNSCuPbZnFeTotal Impurity
    H62C280060.5~63.5≤0.08REM≤0.15≤0.5
    H65C268063.5~68.0≤0.03REM≤0.1≤0.3
    H70C260068.5~71.5≤0.03REM≤0.5≤0.1
    H80C240079~81≤0.03REM≤0.5≤0.1
    H90C220088.0~91.0≤0.03REM≤0.1≤0.1
    H96C210095.0~97.0≤0.03REM≤0.1≤0.2

    Brass AlloyTensile Strength (N/mm)Elongation(%)Hardness (HV)
    Soft1/2HHSoft1/2HHSoft1/4H1/2H3/4HH
    C2100 (H96)≥205270-345≥280≥33≥18—≤6565~8080-100—≥100
    C2200 (H90)≥225295-365≥320≥35≥20—≤7070~9595-120—≥120
    C2300 (H85)≥245310-385≥340≥40≥23—≤7070~9595-120—≥120
    C2400 (H80)≥255320-405≥375≥44≥25—≤8075-105100-130—≥125
    C2600 (H70)≥295370-440430-510≥5≥30≥14≤9090-105105-130130-145145-160
    C2680 (H65)≥295370-440430-510≥45≥30≥14≤9090-105105-130130-145145-160
    C2720 (H63)≥295370-440430-510≥45≥30≥14≤9090-105105-130130-145145-160
    C2800 (H62)≥320410-490≥450≥35≥15——85-105105-130—≥130
