Insulated Custom Copper Coils , Polished Copper Pipe For Plumbing

Ask Lasest Price
Brand Name :	Antai
Model Number :	c11000
Certification :	SGS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	5000 Ton Per Month
Delivery Time :	10 days

Add to Cart

Product Details
Company Profile

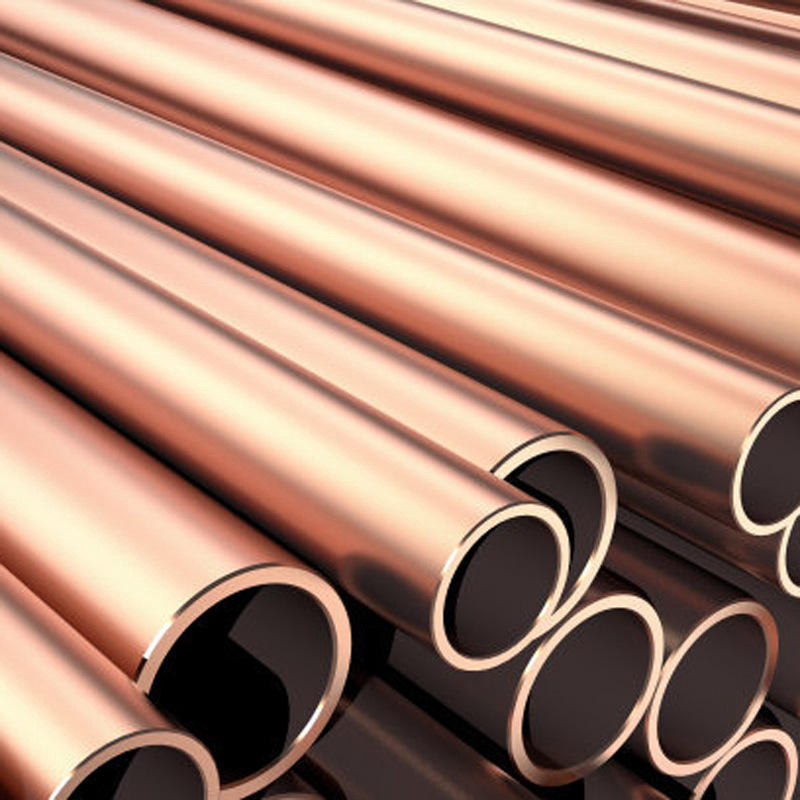

Insulated Custom Copper Coils , Polished Copper Pipe For Plumbing

Customized Copper Pipe Wholesale Insulated Copper Tubes Copper Coils Copper Pipe For Plumbing

Outside Diameter		Wall Thickness	Nominal Weight (kgs)		Packing
inch	mm	mm	15 Meters	15.24 Meters	Carton Dimension(cm³)	Coils per Carton
3/16	4.76	0.8	1.33	1.35	404018.5	16
1/4	6.35	0.8	1.86	1.89	404018.5	12
1/4	6.35	1.0	2.25	2.28	404018.5	12
5/16	7.94	0.8	2.40	2.44	404018.5	10
5/16	7.94	1.0	2.91	2.96	404018.5	10
3/8	9.52	0.8	2.93	2.98	454518.5	8
3/8	9.52	1.0	3.58	3.64	454518.5	8
1/2	12.7	0.8	4.00	4.06	505018.5	6
1/2	12.7	1.0	4.91	4.99	505018.5	6
5/8	15.88	1.0	6.25	6.35	555518.5	5
3/4	19.05	1.0	7.58	7.70	606018.5	4
7/8	22.22	1.0	8.91	9.06	656518.5	3

Standard	GB/T17791-2007,GB/T1527-2006, GB/T18033-2007, YS/T450-2002 ASTM B280,ASTM B68,ASTM B75,ASTM B88 EN12735,AS1571,JIS H3300,etc.
Material	ASTM : Copper (C10200,C11000,C10100,C10200,C12000,)C11600, Brass(C21000,C22000,C23000,C24000,C26000,C27000,C27200, C27400,C2800,C31400,C33000,C35600,C37100,C36000,C35300, C37100,C37700,C37710,C37000,C68700,C41100,C44300,C46200, C46400,C26130,C65600,)
Pipe shape	Round, square, rectangular
Pipe specification	Round Wall thickness:0.2mm-120mm OD:2mm-910mm
Round	Wall thickness:0.2mm-120mm
Round	OD:2mm-910mm
Pipe length	Single Random, Double Random & Required Length
Surface treatment	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.

Feature
1)Light weight, good thermal conductivity, high strength at low temperature.
It is often used in the manufacture of heat exchange equipment (such as condenser, etc.). It is also used in the assembly ofcryogenic pipelines in oxygen production equipment. Small diameter copper pipe is often used for conveying pressurized liquid(such as lubrication system, oil pressure system, etc.) and as a gauge tube.
2)Copper pipe has strong, corrosion-resistant characteristics.
So cooper tube become the modern contractor in all residential commercial housing plumbing, heating and cooling pipeline installation first choice.
3)Copper pipe has high strength, easy to bend, easy to twist, not easy crack, not easy to break.
So copper tube has a certain anti-frost bilge and anti-impact ability, so the copper water pipe in the water supply system in the building once installed, use up safe and reliable, even without maintenance and maintenance.
